ST-150 Geological Drilling Rig Machine for Geological Investigation
Product Description:
ST-150 is a light weight multi-usage engineering drill rig for geophysical prospection & small diameter piling work for civil engineering projects like industrial and civil construction, railway, bridge construction, water wall drilling, soil investigation, core drilling etc.
Product Parameter:
| Technical parameters |
| 1.Basic parameters | The hole diameter | 75,91,110,130,150 mm |
| Drilling depth | 150,100,70,50,30m |
| drill pipe diameter | 42 mm |
| The hole inclination angle | 90-75° |
| Drill size | 1433×697×1273 mm |
| Weight (except engine) | 525 Kg |
| 2. Gyrator | The vertical speed (4 steps) | 71,142,310,620 r/min |
| Vertical travel | 450 mm |
| The vertical load to the maximum speed of movement | 0.05 m/s |
| Speed down the maximum vertical load | 0.067 m/s |
| Max feeding force | 15 KN |
| Maximum vertical gravity | 30 KN |
| Max output torque | 1.25 KN.m |
| 3. Windlass | Since the maximum weight (Single rope) | 15 KN |
| Drum speed | 19,38,84,168 r/min |
| Drum circumference speed (two layers) | 0.166,0.331,0.733,1.465 m/s |
| Drum diameter | 140 mm |
| The diameter of wire rope | 9.3 mm |
| Wire rope capacity | 35 m |
| The diameter of the brake | 252 mm |
| Brake band width | 50mm |
| 4.Oil pump(Model YBC-12/80) | Rated pressure | 8 MPa |
| flow | 8 ml/r |
| Rated speed | 1500 r/min |
| 5. power machine | Engine type: ZS1105-1 | Rated power:12.1 KW |
| Rated speed:2200 r/min |
| Motor type: Y160M-4 | Rated power:11 KW |
| Rated speed:1460 r/min |
Product Feature:
1. Decent rotary speed and gear shift
2. Hydraulic feeding improves drilling efficiency
3. Light weight, small dimension, easy assembly and transportation
XY-1A Borehole Drilling Machine
1.1.1 It is mainly used in the exploration of solid mineral deposits and geological survey of engineering, and the inspection holes of various concrete structures.
1.1.2 Diamond, alloy and steel bits can be drilled according to the different strata.
1.1.3 When the final hole diameter is 75mm and 46mm respectively, the depth of the rated borehole is 100m and 180m respectively, and the maximum depth shall not exceed 110% of the depth of drilling, the rated opening diameter is 110mm and the maximum opening diameter is 150mm.
Product Tags:
|
|

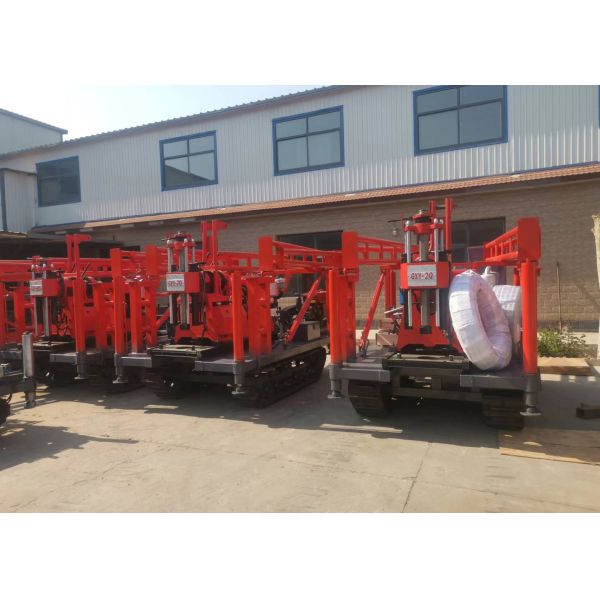

ST-150 Geological Drilling Rig Machine For Geological Investigation Images
|
